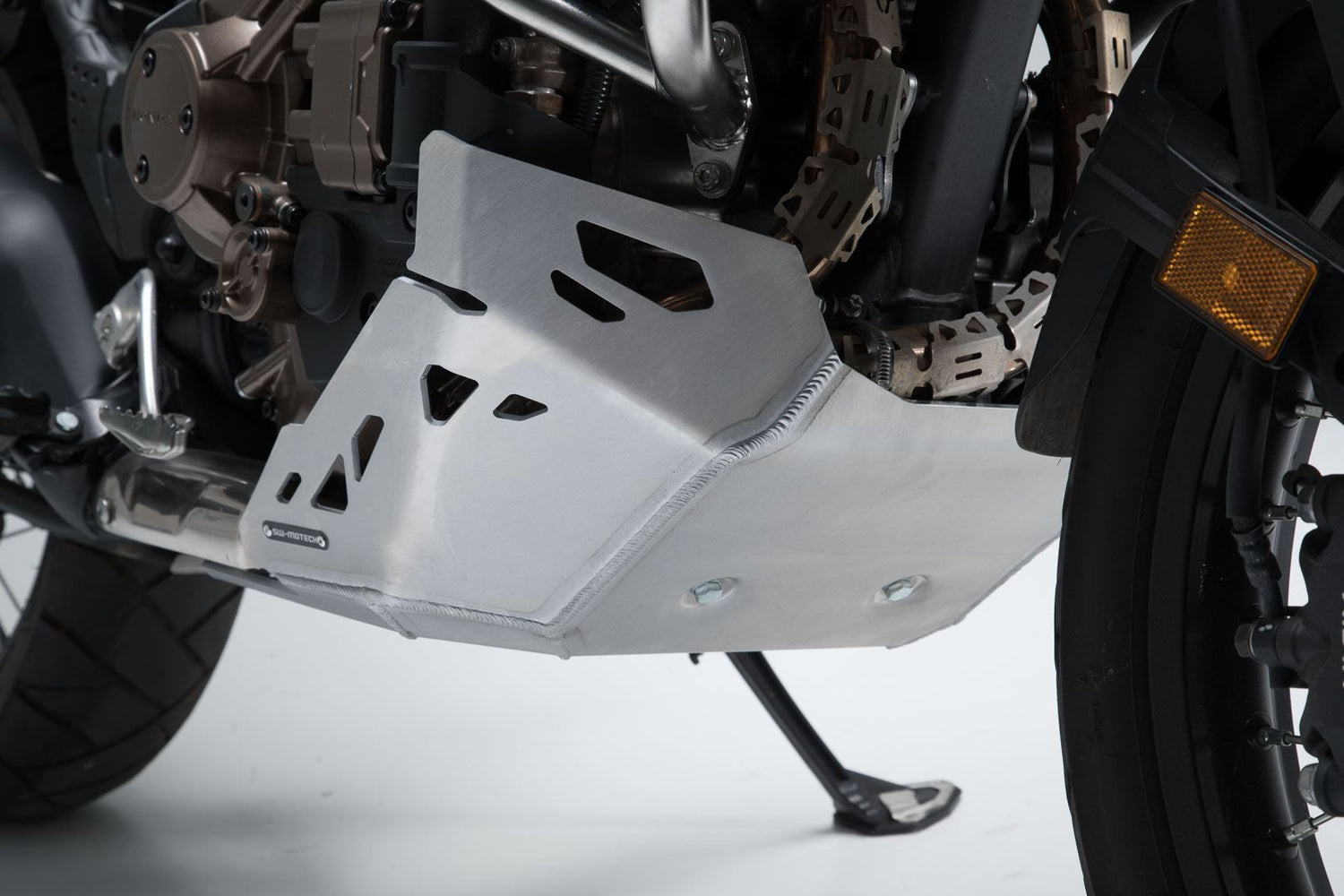

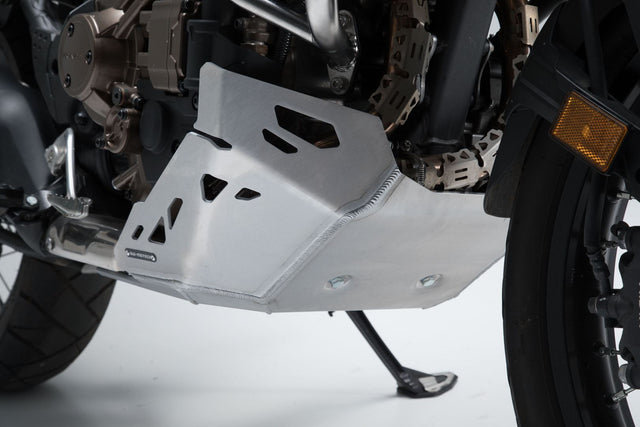

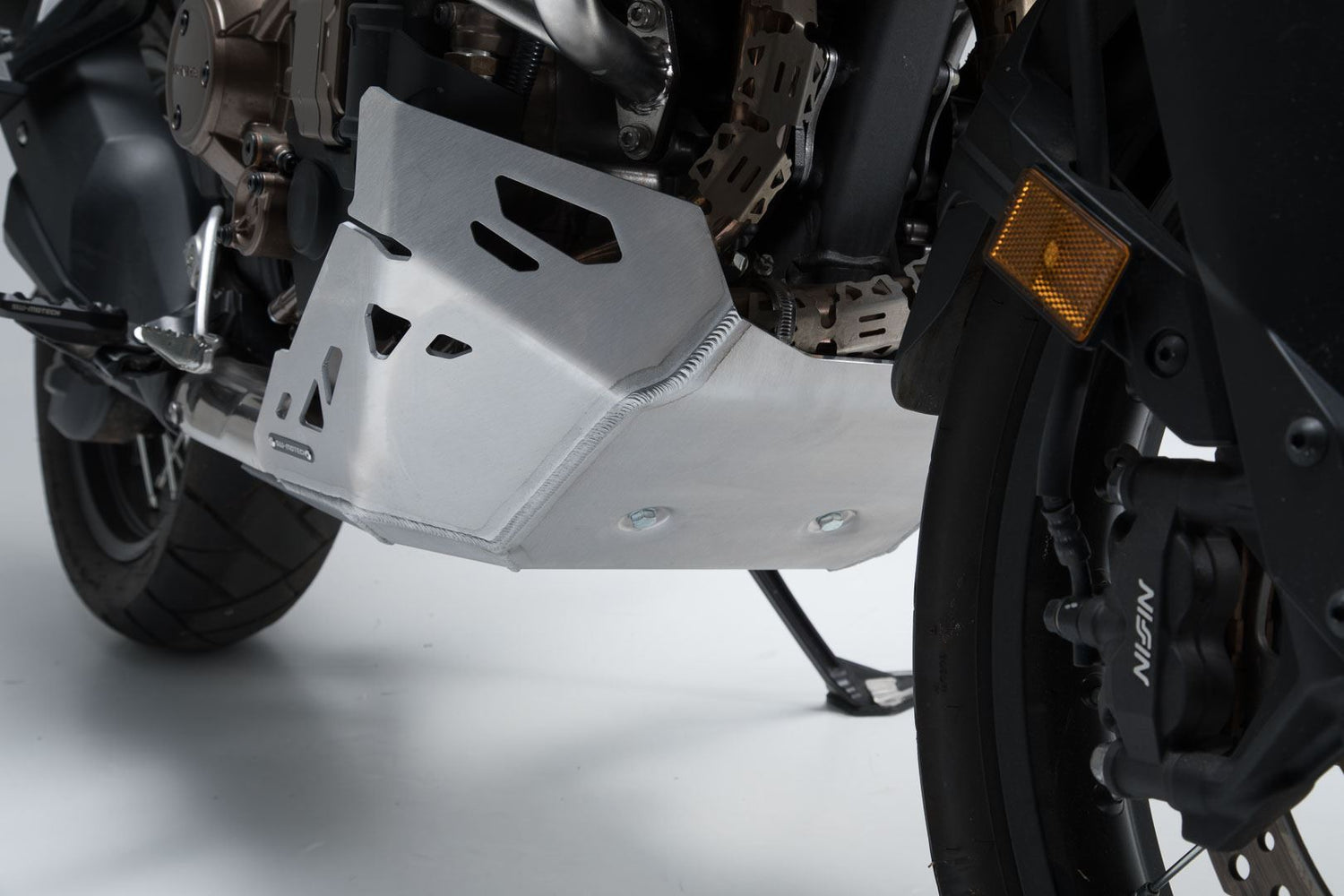

Engine guard Honda CRF 1000 L Africa Twin (15-) Silver

SW-MotechSKU: MSS.01.622.10002/S

Sale price£275.99

Tax included Shipping calculated at checkout


Engine guard

The particularly sturdy design of the engine guard also offers the best possible protection of the valuable components offroad thanks to a wall thickness of five millimeters on the underbody and a particularly large protected area. An additional contact point on the frame, an innovation from SW-MOTECH, distributes the forces acting upon ground contact not only onto the mounting points but also to the steel frame of the Africa Twin.

  • To replace the original engine guard from Honda with a wall thickness of 2.5 millimeters
  • Protects underbody and parts of manifold and exhaust against rocks and collision
  • Robust due to high-strength aluminium alloy five millimeters thick in the lower area, four millimeters wall thickness on the sides
  • The engine guard by SW-MOTECH is distinguished by a particularly long and laterally raised outline and thus has a particularly large protective surface
  • In contrast to the much smaller original engine guard this also protects parts of the manifold and the exhaust
  • Elements made of 8 mm thick hard rubber additionally absorb impact forces and distribute them onto all contact points
  • Two cutouts on the bottom allow access to both oil drain plugs - removal of the engine guard is therefore not necessary in order to drain the engine oil
  • Cutouts on the sides provide ventilation, weight reduction and emphasize the look of the bike
  • Compatible with original side stand from Honda or the centerstand from SW-MOTECH (see accessories)
  • Compatible with all equipment variants of the Honda CRF 1000L Africa Twin (Standard / ABS / DCT), except DCT version with gear lever

Included in delivery

  • 1 x Engine guard
  • Mounting instructions
  • Mounting material


  • Material: Aluminum
  • Material strength: 0,50 cm / 0.20 in
  • Surface: brushed
  • Color: silver
  • Total Weight: 3,5 kg / 7.7 lb


  • The engine guard is supplemented by the crash bar and the engine guard extension mounted on the SW-MOTECH centerstand

Incompatible with

  • Not compatible with DCT version with gear lever

Mounting Instructions
